K2000
Reanin
PRODUCT DESCRIPTION
Reanin-K2000 is a portable, economical and practical polyurethane spray and injection machine, suitable for two-component polyurethane spray technology. It is small in size, easy to operate and maintain, and is especially suitable for small area projects.
The high-speed circulating lubricating fluid in the anti-curing lubrication cylinder can quickly take away the leakage of materials, and the ISO pump shaft is always immersed in the lubricating fluid to avoid crystallization.
Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range.
APPLICATION INDUSTRY

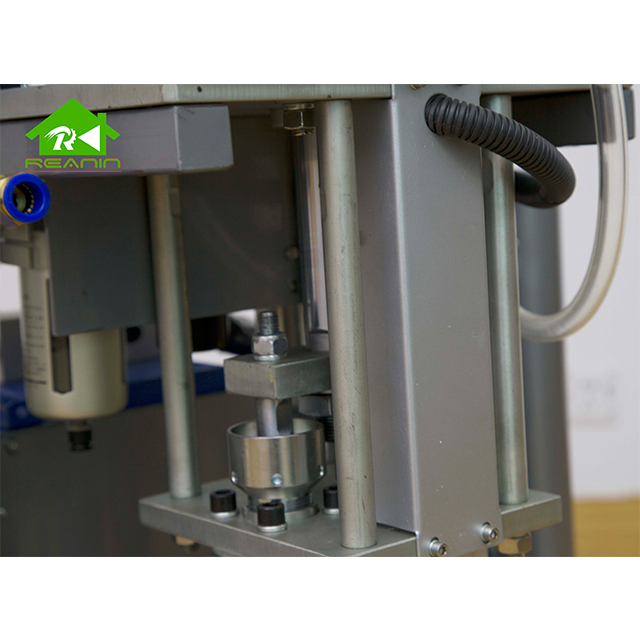

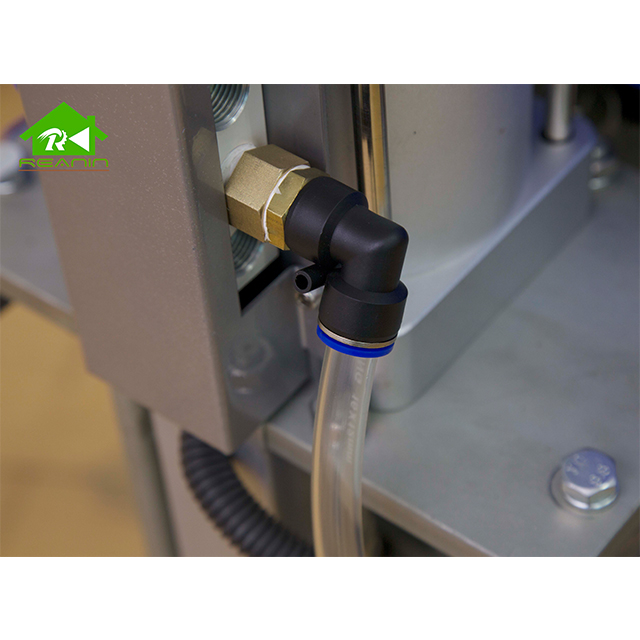

DETAILED PARTS
Technical Parameters
Model | Reanin-K2000 Polyurethane Spray/injection Foaming Machine |
Applicable materials | Polyurethane |
The ratio of raw material | 1:1 |
Viscosity range of raw materials | 200-1000CPS (under working temperature) |
Max working pressure | 15MPa |
Max fluid temperature | 80°C |
Max output | 10kg/min |
Max heated hose length (Optional) | 45m |
Heater power | 3000W×2 |
Heated hose max power | 2000W |
Drive mode | Full pneumatic |
Clean mode | Self-cleaning by air |
Voltage (Optional) | Single phase 220V 50Hz Three phase 380V 50Hz |
Whole power | 9kw |
Pneumatic source | 0.5-0.8Mpa 1m³/min |
MAINFAME
STANDARD CONFIGURATION

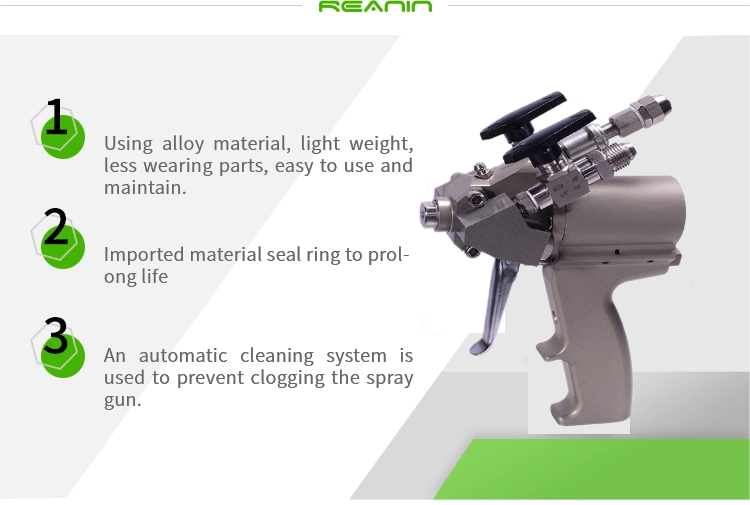

Reanin-K2000 mainframe | 1 set | Reanin spray gun | 1 set |
Transfer pump | 2 sets | Heated hose | 15m |
Transfer pump hose | 2 pcs | Whip hose | 2 pcs |
Air pipe | 1 set | Tools and spare parts | 1 set |
English user manual | 1 set |
MACHINE SIZE
SHIPING PACKAGE
Transportation Parameters (Based on standard configuration) | |
Model | Reanin-K2000 pu foam spray machine |
Package size (LXWXH) | 90X75X143cm |
Net weight | 151kg |
Gross weight | 185kg |
WORKSHOP
CONTACT US
Shandong Reanin Machinery Co.,Ltd
Add: Zhuangke Industrial Park, Suncun Town, High-Tech Zone, Jinan, Shandong Province, China.
Post code: 276000
Tel: +86-531-55565999
Fax: +86-531-55565999
Mob/WhatsApp/WeChat:
+86-18615199270
E-mail: maggie@reaninmachinery.com
