K6000
Reanin
842489
PRODUCT DESCRIPTION
Reanin-K6000 is Hydraulic Polyurethane Spray Foam Machine/equipment. It has the characteristics high working pressure, stable pressure and large spray output. It is especially suitable for large-scale spraying construction.
APPLICATION INDUSTRY
DETAILED PARTS
Technical Parameters
Model | Reanin-K6000 Hydraulic polyurethane spray machine pump |
Applicable materials | Polyurethane and Polyurea |
The ratio of raw material | 1:1 |
Viscosity range of raw materials | 200-1000CPS (under working temperature) |
Max working pressure | 30MPa |
Max fluid temperature | 80°C |
Max output | 15kg/min |
Max heated hose length (Optional) | 90m |
Heater power | 4500W×2 |
Heated hose max power | 3000W |
Drive mode | Hydraulic |
Clean mode | Self-cleaning by air |
Voltage (Optional) | Three phase 220V 60Hz Three phase 380V 50Hz |
Whole power | 17kw |
| Pneumatic source | 0.5-0.8Mpa 1m³/min |
MAINFAME
STANDARD CONFIGURATION

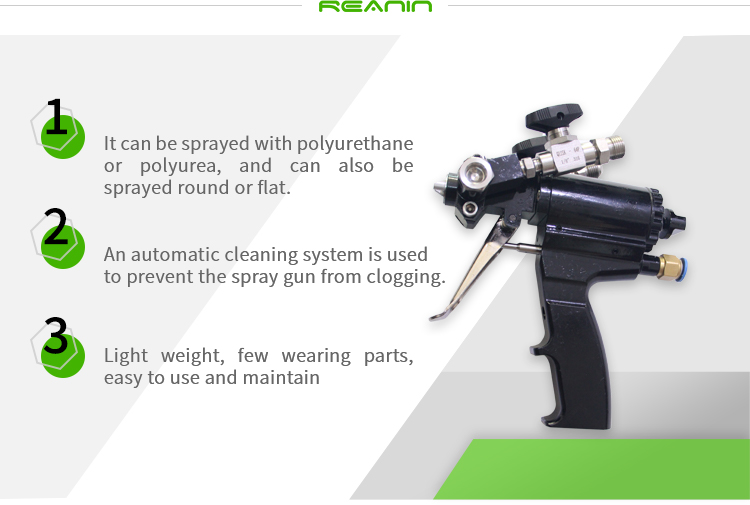

Reanin-K6000 mainframe | 1 set | Reanin spray gun | 1 set |
Transfer pump | 2 sets | Heated hose | 15m |
Transfer pump hose | 2 pcs | Whip hose | 2 pcs |
Air pipe | 1 set | Tools and spare parts | 1 set |
| English user manual | 1 set |
MACHINE SIZE
| Transportation Parameters (Based on standard configuration) | |
| Model | Reanin-K6000 Hydraulic Polyurethane Spray Foam Machine/equipment |
| Package size (LXWXH) | 120X90X155cm |
| Net weight | 329kg |
| Gross weight | 397kg |
WORKSHOP
CONTACT US
Shandong Reanin Machinery Co.,Ltd
Add: Zhuangke Industrial Park, Suncun Town, High-Tech Zone, Jinan, Shandong Province, China.
Post code: 276000
Tel: +86-531-55565999
Fax: +86-531-55565999
Mob/WhatsApp/WeChat:
+86-18615199270
E-mail: maggie@reaninmachinery.com
