K3000
Reanin
842489

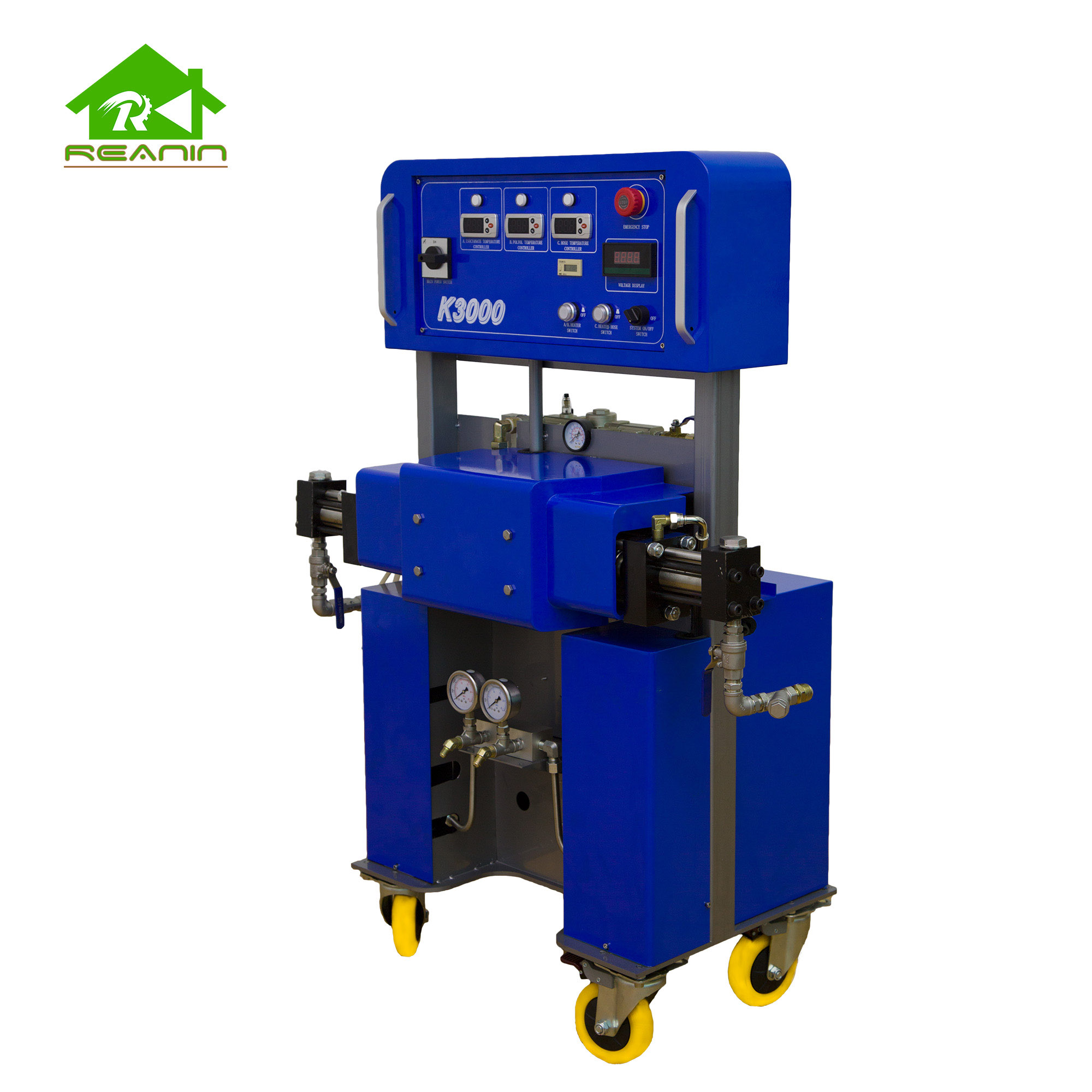

Reanin K3000 Polyurethane Spray Foam Machine can be widely used in building insulation and waterproofing, highway subgrade waterproofing or repairing, railway subgrade waterproofing, automobile thermal insulation and sound insulation, ship anti-corrosion and waterproofing, cold storage thermal insulation and other fields.
Working principle
In this system, compressed air is provided by the air compressor as the source of power. The air compressor provides compressed air for transfer pumps, the mainframe, and the spray gun. The transfer pump in operation extracts and transports the A and B materials in the barrel to the mainframe. The main working part of the mainframe is a double-acting pneumatic booster pump, and the reversing mechanism is a pilot-type full-air-control gas distribution reversing device. After the compressed air enters the air motor, when the air motor piston moves to the left or right end of the cylinder, the left pilot valve or the right pilot valve is operated to control the air flow to instantaneously push the air reversing device to change direction, so that the piston of the air motor is stable and continuous Reciprocating movement. Since the piston of the air motor is rigidly connected to the piston in the booster pump, and the area of the piston of the air motor is larger than the area of the piston of the booster pump, the incoming material is pressurized. The pressurized raw material quickly reaches the preset temperature when passing through the heating unit, and is delivered to the spray gun through the high-pressure heating hose, and finally mixed in the spray gun, and sprayed toward the surface of the object after instantaneous atomization.
Details of K3000
Standard Configuration: 1 set mainframe, 1 set spray gun, 2 sets transfer pump, 15m heated hose,2 pcs transfer pump hose, 2 pcs whip hose, 1 set air pipe, 1 set tools and spare parts, 1 set English user manual.

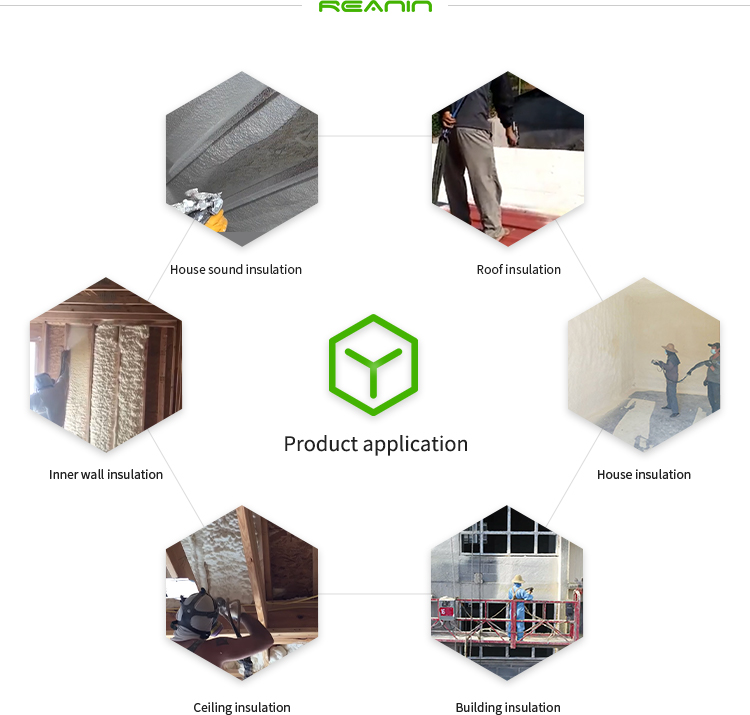

APPLICATION INDUSTRY

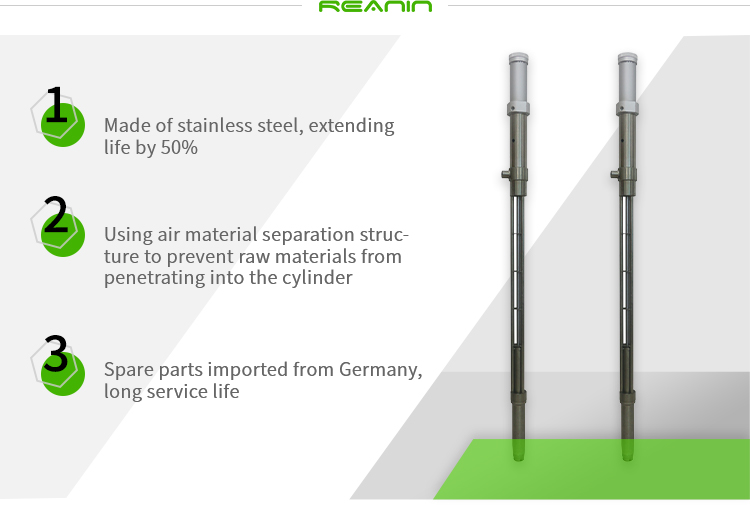

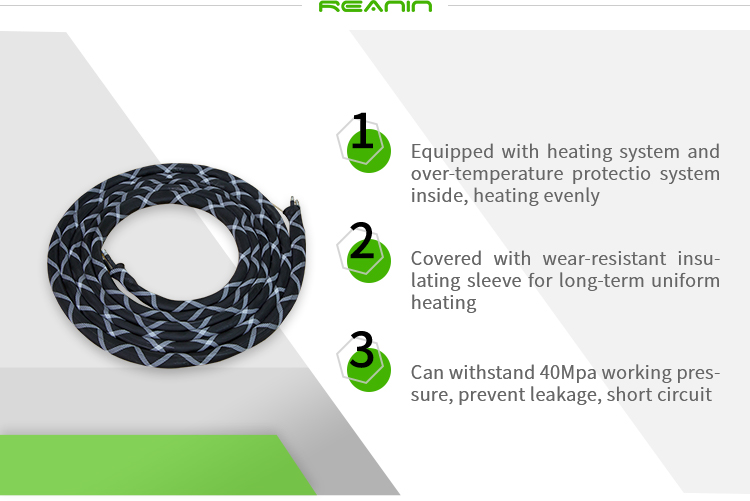

DETAILED PARTS
Technical Parameters
Model | Reanin-K3000 Polyurethane spray/injection foaming machine |
Applicable materials | Polyurethane |
The ratio of raw material | 1:1 |
Viscosity range of raw materials | 200-1000CPS (under working temperature) |
Max working pressure | 20MPa |
Max fluid temperature | 80°C |
Max output | 11kg/min |
Max heated hose length (Optional) | 90m |
Heater power | 4500W×2 |
Heated hose max power | 3000W |
Drive mode | Full pneumatic |
Clean mode | Self-cleaning by air |
Voltage (Optional) | Single phase 220V 50Hz Three phase 380V 50Hz |
Whole power | 13kw |
Pneumatic source | 0.6-0.9Mpa 1m³/min |
MAINFAME
Reanin-K3000 mainframe | 1 set | Reanin spray gun | 1 set |
Transfer pump | 2 sets | Heated hose | 15m |
Transfer pump hose | 2 pcs | Whip hose | 2 pcs |
Air pipe | 1 set | Tools and spare parts | 1 set |
English user manual | 1 set |
MACHINE SIZE
SHIPING PACKAGE
Transportation Parameters (Based on standard configuration) | |
Model | Reanin-K3000 pu polyurethane spray injection insulation machine |
Package size (LXWXH) | 110X80X145cm |
Net weight | 183kg |
Gross weight | 220kg |
WORKSHOP
Customer feedback
CONTACT US
Shandong Reanin Machinery Co.,Ltd
Add: Zhuangke Industrial Park, Suncun Town, High-Tech Zone, Jinan, Shandong Province, China.
Post code: 276000
Tel: +86-531-55565999
Fax: +86-531-55565999
Mob/WhatsApp/WeChat:+86-18615199270
E-mail: maggie@reaninmachinery.com
