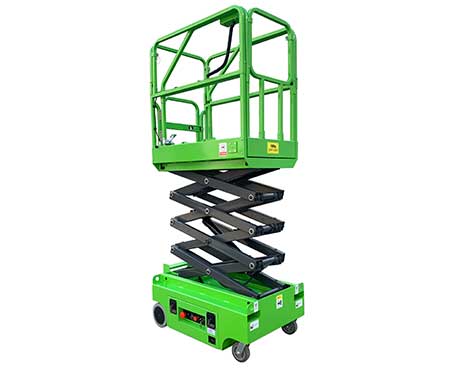

Self Propelled Mini Scissor Lift

Self propelled Mini Scissor Lift . Operators can control moving, turning, lifting and lowering standing on the platform. It’s very compact and portable. Lifting height: 3m~4m. Load capacity: 300kg
Availability:
Quantity:
sharethis sharing button
  • Reanin

Products Description


Self propelled Mini Scissor Lift . Operators can control moving, turning, lifting and lowering standing on the platform. It’s very compact and portable. Lifting height: 3m~4m. Load capacity: 300kg

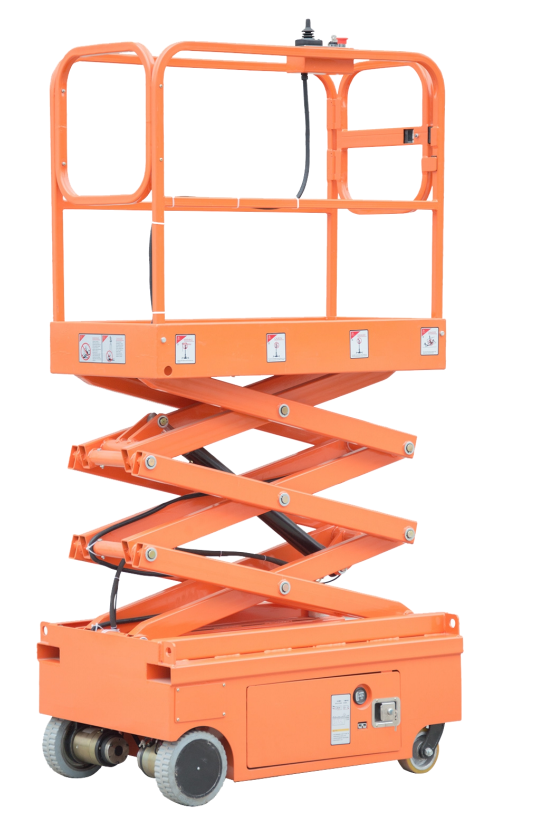

升降机01

Features :

1. Self-drive system for on site maneuvering from platform (stowed)

2. Roll-out deck extension keeps everything you need within arms reach (optional)

3. Non-marking tyres

4. Power source - 24V (four 6V AH batteries)

5. Fit through narrow doorways and aisles

6. Compact dimensions for space efficient storage.

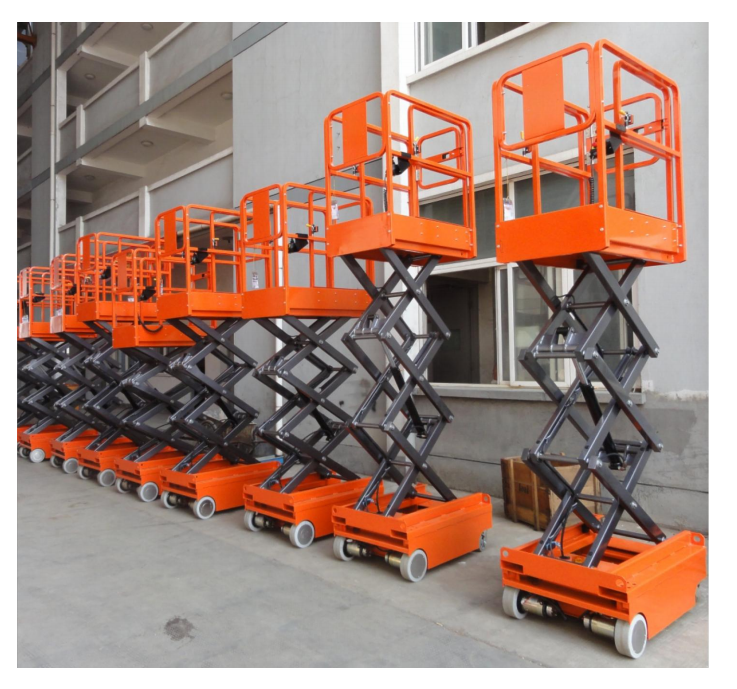

升降机02

Configurations:

Electric driving motor

Electric driving control system

Electric motor and hydraulic pump station

Durable battery

Battery indicator

Intelligent battery charger

Ergonomics control handle

High strength hydraulic cylinder



Advantages:

Mini self propelled scissor lift is compact,with a small turning radius for tight workspace.It is light,meaning it can be used in weight-sensitive floors.The platform is spacious enough to hold two to three workers and it can be used both indoors and outdoors.It has a weight capacity 300KG and is able to carry both workers and gears.It has centralized battery fill,making battery maintenance easier.


Further,it can be driven at full height and it has an in-built pothole protection system,that will provide support if it is driven over uneven surfaces.The mini self propelled scissor lift has an effective electric drive,allowing it to run longer than other lift in its class. The scissor lift has low operating costs,because it doesnt have chains,cables or rollers in its mast.


Self propelled Mini Scissor Lift adopts special drawer-structure. Two"drawers" are equipped at right and left side of the scissor lift body. Hydraulic pump station and electric motor is put into one drawer. Battery and charger is put into the other drawer. Such special structure make it much easier to maintain.


Two sets Up-down control system is equipped. One is on the low side of the body and the other is on the platform. Ergonomics operation handle on the platform controls all movement of the scissor lift.


Consequently, self propelled mini scissor lift greatly improved the customers work efficiency.
