K3000
Reanin
842489
Reanin K3000 Polyurethane Spray Foam Machine can be widely used in building insulation and waterproofing, highway subgrade waterproofing or repairing, railway subgrade waterproofing, automobile thermal insulation and sound insulation, ship anti-corrosion and waterproofing, cold storage thermal insulation and other fields.
Working principle
In this system, compressed air is provided by the air compressor as the source of power. The air compressor provides compressed air for transfer pumps, the mainframe, and the spray gun. The transfer pump in operation extracts and transports the A and B materials in the barrel to the mainframe. The main working part of the mainframe is a double-acting pneumatic booster pump, and the reversing mechanism is a pilot-type full-air-control gas distribution reversing device. After the compressed air enters the air motor, when the air motor piston moves to the left or right end of the cylinder, the left pilot valve or the right pilot valve is operated to control the air flow to instantaneously push the air reversing device to change direction, so that the piston of the air motor is stable and continuous Reciprocating movement. Since the piston of the air motor is rigidly connected to the piston in the booster pump, and the area of the piston of the air motor is larger than the area of the piston of the booster pump, the incoming material is pressurized. The pressurized raw material quickly reaches the preset temperature when passing through the heating unit, and is delivered to the spray gun through the high-pressure heating hose, and finally mixed in the spray gun, and sprayed toward the surface of the object after instantaneous atomization.
Details of K3000

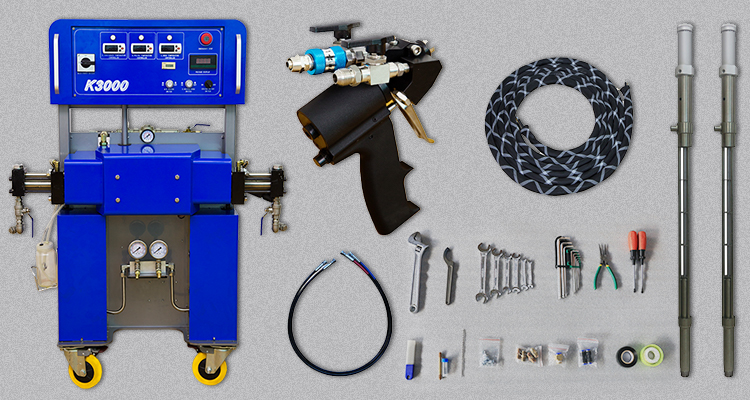

Standard Configuration: 1 set mainframe, 1 set spray gun, 2 sets transfer pump, 15m heated hose，2 pcs transfer pump hose, 2 pcs whip hose, 1 set air pipe, 1 set tools and spare parts, 1 set English user manual.
Reanin K3000 Polyurethane Spray Foam Machine can be widely used in building insulation and waterproofing, highway subgrade waterproofing or repairing, railway subgrade waterproofing, automobile thermal insulation and sound insulation, ship anti-corrosion and waterproofing, cold storage thermal insulation and other fields.
Working principle
In this system, compressed air is provided by the air compressor as the source of power. The air compressor provides compressed air for transfer pumps, the mainframe, and the spray gun. The transfer pump in operation extracts and transports the A and B materials in the barrel to the mainframe. The main working part of the mainframe is a double-acting pneumatic booster pump, and the reversing mechanism is a pilot-type full-air-control gas distribution reversing device. After the compressed air enters the air motor, when the air motor piston moves to the left or right end of the cylinder, the left pilot valve or the right pilot valve is operated to control the air flow to instantaneously push the air reversing device to change direction, so that the piston of the air motor is stable and continuous Reciprocating movement. Since the piston of the air motor is rigidly connected to the piston in the booster pump, and the area of the piston of the air motor is larger than the area of the piston of the booster pump, the incoming material is pressurized. The pressurized raw material quickly reaches the preset temperature when passing through the heating unit, and is delivered to the spray gun through the high-pressure heating hose, and finally mixed in the spray gun, and sprayed toward the surface of the object after instantaneous atomization.
Details of K3000
Standard Configuration: 1 set mainframe, 1 set spray gun, 2 sets transfer pump, 15m heated hose，2 pcs transfer pump hose, 2 pcs whip hose, 1 set air pipe, 1 set tools and spare parts, 1 set English user manual.
