PRODUCT DESCRIPTION

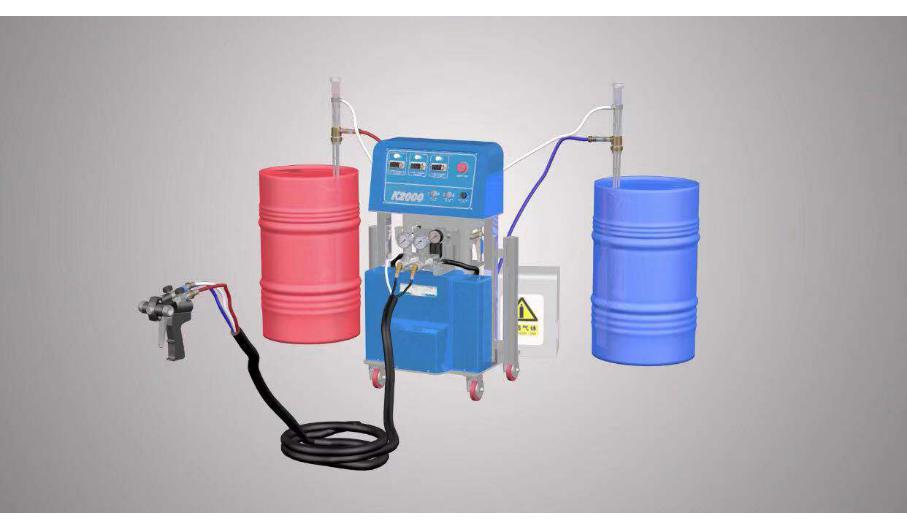

Reanin-K5000 is an ultra-high pressure pneumatic Polyurea Spray Machine Factory. It equipped with two air motors, which can use the 0.9MPa air source to make the material pressure reach 30MPa, and the spray effect similar to the hydraulic spray machine, but the price is more cheap.
APPLICATION INDUSTRY
Construction, Automobile, Road, Railway, Shipbuilding, Mining, Petroleum, Electrical, and other industries.
HOW IT WORKS
DETAILED PARTS
Technical Parameters
| Model | Reanin-K5000 Polyurethane And Polyurea Spray Machine Factory |
| Applicable materials | Polyurethane And Polyurea |
| The ratio of raw material | 1:1 |
| Max working pressure | 30MPa |
| Max fluid temperature | 80°C |
| Max output | 15kg/min |
| Max heated hose length (Optional) | 90m |
| Heater power | 4500W×2 |
| Voltage (Optional) | Single phase 220V 50Hz Three phase 380V 50Hz |
| Heated hose max power | 3500W |
| Drive mode | Full pneumatic |
| Pneumatic source | 0.6-0.9Mpa 1m³/min |
MAINFAME
STANDARD CONFIGURATION
| Reanin-K5000 mainframe | 1 set | Reanin spray gun | 1 set |
| Heated hose | 15m | Transfer pump | 2 sets |
| Transfer pump hose | 2 pcs | Whip hose | 2 pcs |
| Air pipe | 1 set | Tools and spare parts | 1 set |
| English user manual | 1 set |
MACHINE SIZE
SHIPPING PACKAGE
| Transportation Parameters (Based on standard configuration) | |
| Model | Reanin-K5000 Pu Foam Injection Machine And Polyurea Spray Machine |
| Package size (LXWXH) | 110X80X145cm |
| Net weight | 207kg |
| Gross weight | 243kg |
WORKSHOP
CONTACT US
Shandong Reanin Machinery Co.,Ltd
Add: Zhuangke Industrial Park, Suncun Town, High-Tech Zone, Jinan, Shandong Province, China.
Post code: 276000
Tel: +86-531-55565999
Fax: +86-531-55565999
Mob/WhatsApp/WeChat:
+86-18615199273
E-mail: lily@reaninmachinery.com
