40KW 50kva
Reanin
50KVA Cummins Diesel Generator; Cummins engine; Newtec or Stamford alternator; Smartgen control panel; Warranty: 1 year or 1000 hours.
System Ratings
Model | Voltage | HZ | P.F (COS¢) | Standby Power | Prime Power |
NPC50GF | 400/230V | 50 | 0.8 | 44KW/55KVA | 40KW/50KVA |
Prime power This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.
Standby power This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
Standard Feature
// Global Warranty Support
// 1 Year Standard Warranty
// Cummins Diesel Engine
- 3.9L displacement
- Electronic Fuel Pump
- 4-Cycle
// Complete Range of Accessories
- Industrial Muffler
- Industrial Bellows
- Circuit Breaker
// Generator
- Brushless Excited(Self-Excited)
// Digital Control Panel(s)
- UL recognized,NFPA110
- Complete System Metering
- LCD display
// Cooling System
- Integral Set-Mounted
- Engine Driving fan
Products Description

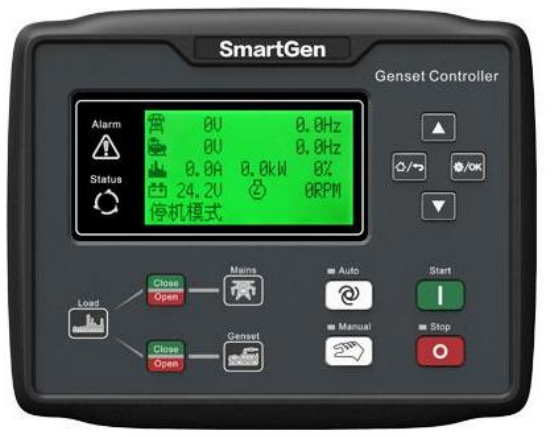

// The HGM6120N is an Digital Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs.
Digital Show
- Voltage - Frequency(Speed) - Load Power - Power Factor - Running time - Battery Voltage - Oil Pressure - Fuel Consumption(Optional) Protection
- Over/Low Voltage - Over/Low Speed - Over/Low Frequency - Engine Fail Start - Battery Charge Failure
Emergency Stop
- Over/Low Load - Low Oil Pressure - High Coolant Temperaturer - Over/Low Engine Speed - Fail to Start Engine 3 Times

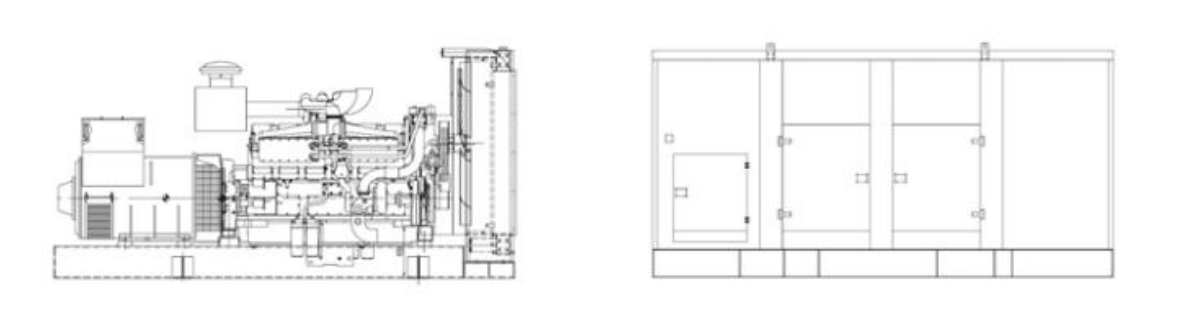

WEIGHT & DIMENSIONS
Open Type | Soundproof Type (Silent Type) |
Size: 1600(L)*700(W)*1200(H)mm | Size: 2400(L)*1000(W)*1560(H)mm |
Weight:750KG | Weight: 1000KG |
